耐 熱 套 管
Withstands continuous exposure to 260℃ (500℉)
Up to 1090℃ (2000℉) for 15~20 minutes
Up to 1650℃ (3000℉) for 15~30 seconds
Size:1/4”(6mm) ~ 5”(127mm)
Thermal conductivity (K-Factor):
Industrial grade K=0.541 BTU-in./hr-ft2-℉
Aerostyle grade K=0.610 BTU-in./hr-ft2-℉
Electrical insulation capacity (Dielectric breakdown voltage):
Average Dielectric Breakdown Voltage 7.3kV
Min. Dielectric Breakdown Voltage 5.0kV
Max. Dielectric Breakdown Voltage 10.0kV
Chracteristic: greaseproof, waterproof, excellent modulus of elasticity
resists molten metal splash
承受持續溫度：260℃ (500℉)
承受 1090℃ (2000℉) 約 15~20分鐘
承受瞬間 1650℃ (3000℉) 約 15~30秒
尺寸：1/4英吋 (6公厘) ~ 5英吋 (127公厘)
導熱系數(K-Factor)：
一般工業品級 K=0.541 BTU-in./hr-ft2-℉
航天工業品級 K=0.610 BTU-in./hr-ft2-℉
絕緣性能 (電介質破壞電壓數)：
平均值：7.3kV；最小值 5.0kV；最大值 10.0kV
特點：防油、防水、阻擋熔鐵噴濺
耐 熱 套 管

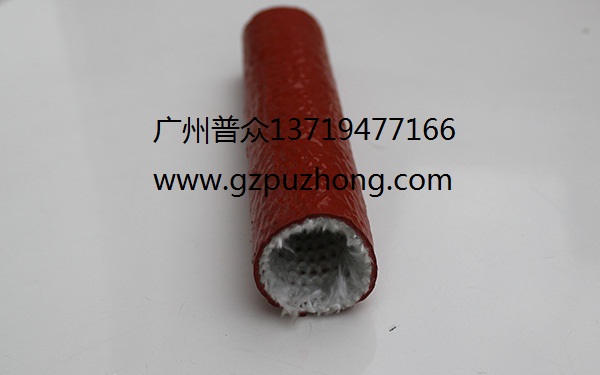

Constructed from a high bulk fiberglass sleeve heavily coated with iron oxide red
silicone rubber, Pyrojacket sheds molten metal splash and withstands intense heat
and flame, making it ideal for protecting hoses, cable and tubing in a variety of
hostile environments. Withstands continuous exposure to 500℉ (260℃), up to 2000
℉ (1090℃) for 15-20 minutes, and up to 3000℉ (1650℃) for 15-30 seconds.
以高膨松性玻璃纖維之套管所制成，并覆以厚實的氧化鐵紅硅膠，耐熱套管能阻擋熔鐵噴濺，
且不受高溫和火焰所損壞，這些性質使其適用于保護惡劣環境下的軟管、纜線和管路。耐熱
套管可連續暴露于 500°F (260°C)的高溫中而不受損壞，高達 2000°F (1090°C)的溫度下可承
受 15-20分鐘，3000°F (1650°C)的溫度下則可承受 15-30秒。
Available in size up to 5” (127mm) diameter, Pyrojacket has an excellent modulus
of elasticity and can be used to bundle hoses and cables.
耐熱套管尺寸齊全，最大直徑達 5英吋 (127公厘)，且擁有絕佳的延展系數，極適合用于包
覆軟管和纜線。
Pyrojacket’s insulation properties allow it to provide effective burn protection for
personnel from hot hoses and piping, while reducing costly heat energy losses.

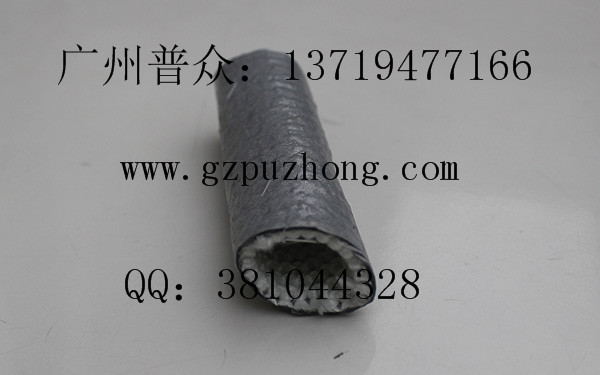

Available in both Industrial and Aerostyle grades.
耐熱套管的阻絕特性除了能夠有效避免人員遭受高熱管線的燒燙傷害，更能大幅節約熱能源
流失的成本。耐熱套管備有一般工業品級和航天工業品級可供選擇。

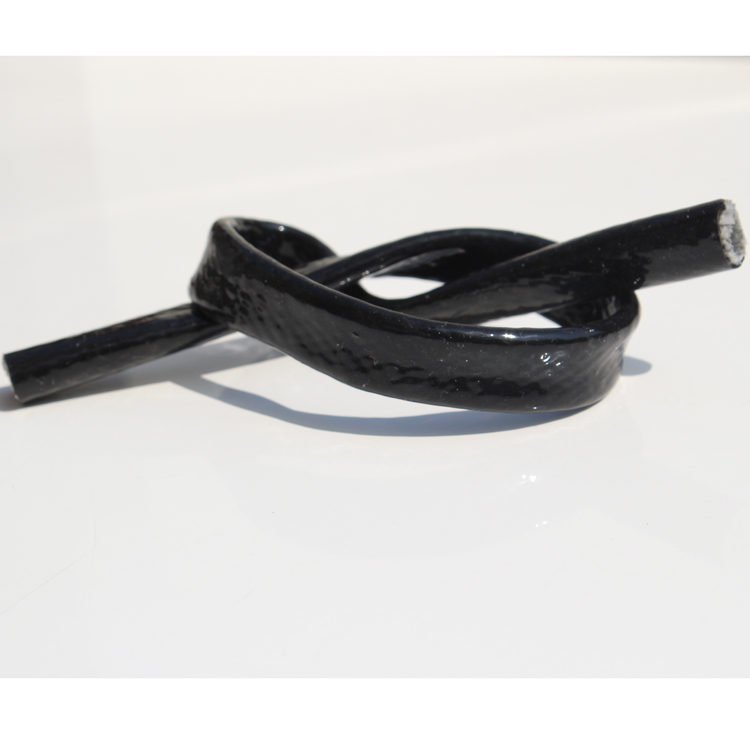

Also available in other colours by special order.
可依需求提供多種顏色選擇。
PJ-04 PJ-05 PJ-06 PJ-07 PJ-08 PJ-10 PJ-12 PJ-14 PJ-16 PJ-18 PJ-20 PJ-22 PJ-24 PJ-26
PJ-28 PJ-32 PJ-36 PJ-40 PJ-44 PJ-48 PJ-52 PJ-56 PJ-60 PJ-64 PJ-72 PJ-80
PJA-05 PJA-06 PJA-07 PJA-08 PJA-10 PJA-12 PJA-14 PJA-16 PJA-18 PJA-20 PJA-22
PJA-24 PJA-26 PJA-28 PJA-32 PJA-36 PJA-40 PJA-44 PJA-48 PJA-52 PJA-56 PJA-60 PJA-64
